FastTest OTDR Fiber Optic Tester with 500M Launch Cable

Our QX45 singlemode OTDR has great features that can save you valuable time during installation and maintenance of fiber optic networks.

The QX45 features a 4200mAh Li-Ion rechargeable battery.  This will enable field operations close to 18 hours and 10 hours even with the laser continuously on.  The QX45 also has a built in continuous or modulated red light laser.  This visual fault locator will allow the visual identification of breaks and over bends in fiber.  The QX45 includes powerful post processing software for analyzing  and editing trace data on a PC. The Report Creation Wizard function provides a step-by-step guidance for users in generating comprehensive reports in a printable PDF format.

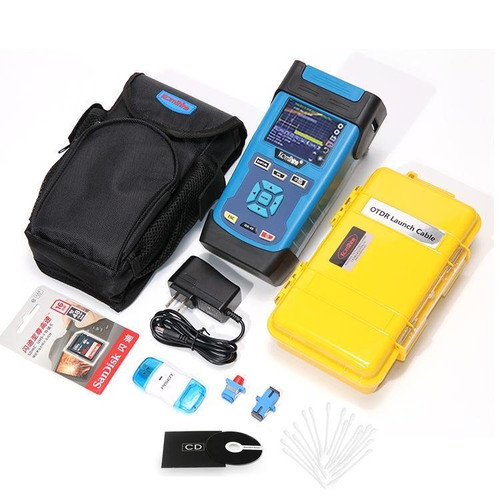

Package Includes

  • OTDR Main Body
  • Carry Bag
  • 16G SD Card
  • Charger
  • OTDR Launch Cable 500m
  • Clean Swabs 25pcs
  • FC-SC, SC-SC Adapter
  • SD Card Reader
  • User Manual
  • Curve Analyze Software



SPECIFICATIONS


 PARAMETER  QX45
 Central Wave Length  1310nm/1550nm ± 20nm
 Fiber Type  Single-Mode
 Dynamic Range  32/30dB(100-110km)
 Min. event deadzone  1.6m(single-mode)
 Ranging accuracy  ±(1m+sampling interval+0.003%×distance)(excluding
 refractive index embedding error)
 Resolution of ranging  0.1m-16m
 Loss threshold value  0.01dB
 Linearity  0.05dB/dB
 VFL output power  10mW
 Measurement range  0.3, 1, 3, 5, 10, 30, 60, 120km (single-mode)
 Pulse width  5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 10240ns
 Number of sampling points  65K
 Waveform storage capacity  1000 frames
 1000 frames
Range of refractive index
 1.00000 - 2.00000
 Range of optical-cable correction factor  0.80000 -1.0000
 LCD display  3.5” color LCD
 Port  USB
 Optical output port  FC/UPC (SC/PC optional)
 Power supply  AC/DC adapter:
 AC input: 100V - 240V(1.5A)
 Output DC: 9V(2A)
 Power frequency: 50Hz - 60Hz
 Internal lithium battery: 7.4V, 4200mAh
 Working hours of battery: 15 hours (normal temperature)
 Menu language  English/Spanish/Portuguese
 Environmental requirements  Storage temperature: -40C -70C (exclusive of battery)
 Relative humidity: 5% - 95%, no condensation
 Dimensions  9.84" x 5.12" x 2.59" - 250mm×130mm×66mm
 Weight  2.2lbs - 1KG
