All Tilt' N Plug products belong to a family of compact interconnection solutions designed for installation into a table as part of a presentation system. They are designed for mounting into a table, podium, or other furniture to provide a way of connecting audiovisual equipment on top of the furniture to a presentation system below the furniture.
- Single user connection point
- Gas-spring for smooth operation
- Ultra-flat surface when closed
- 6' AV and Data Cables, 9-10' Power Cable
- Customizable connectors and finish
- 12 Amp AC socket
- Many custom snap-in assemblies
- UL listed
All use the same core element; a multimedia input plate that can be "tilted' open when needed and pushed closed when not needed.
All signals pass through the input plate directly to cables on the underside of the table with no intervening circuitry. The use of additional ALTINEX Signal Management Solutions such as computer video interfaces, distribution amplifiers, and swithchers may be desirable.
The input plate of the Tilt'N Plug Jr. is accessible by pushing down on the top cover. The unit then auto-tilts open with help from an internal pneumatic spring. Once open, the input plate remains securely in place. The input plate is hidden by pressing down on the top cover until the latching mechanism engages. In its closed position, the top panel lies flush with the table's top, held in place by the latching mechanism.

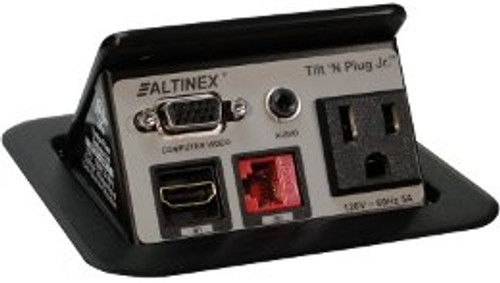

The 211-128BK provides a single input plate with Computer Video: (1) HDMI F-M, 6ft (2m), VGA: (1) HD-15, F-M, 6ft (2m), computer/MP3 audio (3.5mm F-M), and network Cat 6 (RJ-45 F-M) input connections in 6ft (2m) length. It also provides an AC Power connection in 9-10ft (2.7-3.0m) suitable for use throughout the U.S. and Canada.
All Tilt' N Plug Jr. Signal Management Solutions come with a standard top and bezel offering a high quality matte black finish. The unit can also be customized with different connections and colors. Please call your salesman for a configuration exactly to your specifications.
