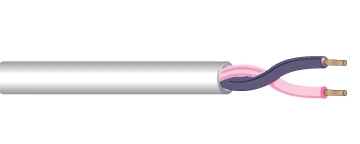

West Penn LED162P is a plenum-rated 16 AWG twisted pair made for LED dimming and lighting control wiring. Its violet and pink conductors follow the usual color convention for 0-10V dimming circuits, so terminations are quick and easy to check.
Two 16 AWG solid ASTM bare copper conductors, twisted pair construction
Nominal DC resistance 4.2 ohms per 1000 ft
Polymer alloy plenum insulation, .008 in nominal thickness
Insulation colors: violet, pink
Flexible plenum jacket .014 in thick, nominal OD .164 in
NEC Type CMP
UL and cUL listed, meets 300V NEC requirements
Flame rating NFPA 262 smoke and flame test
Applications in plenum spaces: LED lighting control, communication and control
