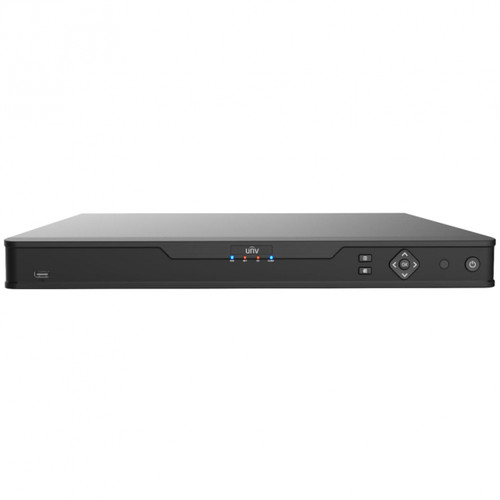

Uniview NVR304-32E 32 Channel 4K H.265 2U NVR

Video and Audio

IP Video Input

32-ch

Two-way audio Input

1-ch, RCA

Network

Incoming bandwidth

320Mbps

Outgoing bandwidth

320Mbps

Remote connection

128

Video/Audio Output

HDMI/VGA Output

HDMI1/VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

HDMI2:

4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Audio Output

1-ch, RCA

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

16-ch

Decoding

Compression

H.265/H.264

Live view/ Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x 720p@25

Hard Disk

SATA

4 SATA interfaces

Capacity

up to 6TB for each disk

External Interface

Network Interface

2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces

Network Function

HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P

Serial Interface

1 x RS-485

USB Interface

Front panel: 1 x USB2.0

Rear panel: 1 x USB2.0, 1 x USB3.0

Alarm In

16-ch

Alarm Out

4-ch

General

Power Supply

12V DC

Consumption ( without HDD )

≤ 12 W

Working Temperature

-10°C ~ + 55°C ( +14°F ~ +131°F )

Working Humidity

10% ~ 90%

Dimensions

44 × 440 × 344mm ( 1.7" × 17.3" × 13.5" )

Weight ( without HDD )

≤ 3.14 Kg (6.92 lb )
