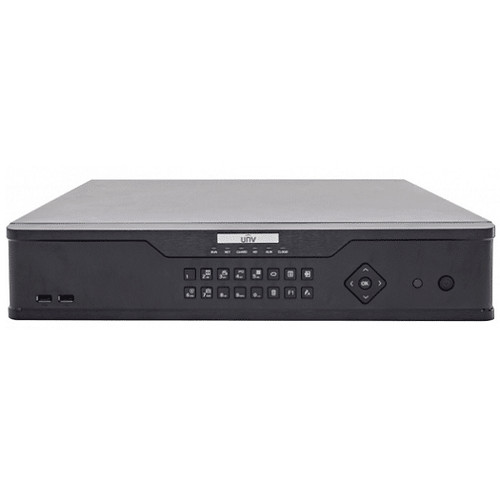

Uniview NVR304-16EP 32 Channel with 16 PoE 4K H.265 2U NVR

Write a Review

Uniview

Uniview NVR304-16EP 32 Channel with 16 PoE 4K H.265 2U NVR

Rating Required

Name

Email Required

Review Subject Required

Comments Required

Call for Installer Pricing 800-822-2604

Brand: Uniview
SKU:: 061-304-32EP
Condition:: New

Description
Product Reviews

Uniview NVR304-16EP 32 Channel with 16 PoE 4K H.265 2U NVR

16/32-channel input
Third-party IP cameras supported with ONVIF conformance
Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution
Up to 12 Megapixels resolution recording
Support H.265/H.264 video formats
Accurate retrieval, instant playback
4 SATA HDDs, Up to 8TB for each HDD
Support various VCA detection alarm and VCA search
Support for 12V Power output
Plug & Play with up to 16 independent PoE network interfaces
Support for P2P, UPnP, NTP, DHCP, PPPoE
Support for mobile client access

Video and Audio
IP Video input	32-ch
Two-way audio input	1-ch, RCA
Network
Incoming bandwidth	320Mbps
Outgoing bandwidth	320Mbps
Remote connection	128
Video/Audio Output
HDMI/VGA output	HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Audio Output	1-ch, RCA
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	16-ch
Decoding
Compression	H.265/H.264
Live view/ Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x 720p@25
Hard Disk
SATA	4 SATA interfaces
Capacity	up to 6TB for each disk
External Interface
Network Interface	1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
Network Function	HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P
Serial Interface	1 x RS-485
USB Interface	Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0
Alarm In	16-ch
Alarm Out	4-ch
Power Output	12 VDC
PoE
Interface	16 independent 100 Mbps PoE network interfaces
Supported Standard	IEEE 802.3at
General
Power Supply	100 ~ 240 VAC
Consumption ( without HDD and PoE )	≤ 20 W
PoE	Max 30W for single port Max 200W in total ( 12.5W for each )
Working Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity	10% ~ 90%
Dimensions	86 × 442 × 425mm (3.4" × 17.4" × 16.7" )
Weight ( without HDD )	≤ 5.24 Kg ( 11.55 lb )
