This unit has been replaced by the Watchdog 15P
ON BOARD SENSORS: Temperature
PORTS: Digital: 1, Analog: 0, Relay Output: 0
Connect up to 16 external sensors with splitters

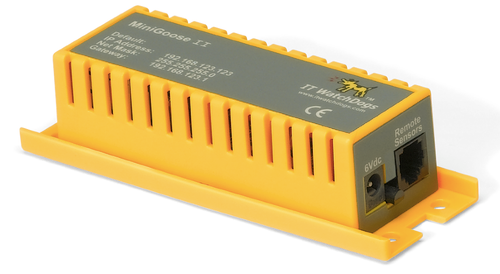

The MiniGoose II environmental monitor provides Web-based remote surveillance, logging and graphing of temperature and connected sensors. MiniGoose II supports 16 additional sensors using splitters available at low cost. It is especially useful for monitoring environmental conditions in critical applications such as data center aisle rack monitoring, computer server rooms, network closets, laboratories and other critical facilities.
Easily view and log temperature and other connected sensors over the intranet or the Web. No software required - securely access the graphical user interface from a web browser. Mounts with four screw holes. Power adapter included. Supports both digital and analog sensors (CCAT required for analog sensors). MiniGoose II supports the IOE and Remote Power Manager X2.
SNMP, Email & SMS Alerts
The MiniGoose II can trigger escalating alarms if temperature and other measurements fall outside of specified thresholds via SNMP (v1, v2c, v3), email and SMS messages (e-mail to SMS gateway). For example, specify an email notification to one or more users at 70° F, add another layer of personnel to an additional email alarm at 80° F, add your third party contractor at 85° F...specify up to 200 alarms per unit.
View Charts and Graphs on the Web
MiniGoose II serves active Web pages displaying real time readings and graphs of temperature and connected sensors in addition to data logs in standard format (downloadable as XML or CSV file). Graphing scales are fully adjustable.
Interface Network IP Cameras
The Web page interfaces up to four IP cameras (not included), allowing you a quick view of remote conditions. Especially useful in event of alarm.
No Software Required
The MiniGoose II is simple to install and use, requiring no special software other than a standard Web Browser. It connects to an Ethernet Network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web Browser and can be password protected with 3 access account level types: Administrator, Control, View Only. From within an Intranet or over the Internet, the user can securely access the monitor by entering its IP address.
Temperature: -22 to 185 °F (-30 to 85 °C), +/- 0.5 °C
Remote Sensor Support
Digital sensor: 1 port (supports 16 sensors, 600 FT maximum aggregate length)
Physical: 4”L x 1.5”H x 1.5”W, 0.5 pounds
Power: 6VDC (supplied wall transformer)
Ethernet: 10 Mbps, RJ-45 receptacle
Real Time Clock (RTC) with power backup
Reset IP push-button: restores factory defaults
Warranty: 1 year (extended warranties available)
HTTP/HTTPS: web access
Alarms: high/low values, multiple thresholds per sensor
ESMTP / POP3: email alerts, ESMTP / POP3 auth
SNMP (v1, v2c, v3): gets, trap and clear alerts, MIB
Paging: email to pager proxy
XML: meta-tagged sensor values, alarms, config
Syslog: send debug messages to Syslog server
Web interface: 4 styles to choose from
Access-control: 3 access levels (view, control, admin)
Web cams (optional): Up to four can be displayed
Compatible with WatchDog Console Aggregator
