VGA 2 Port VGA Extender over Cat 5 System

Bookmark and Share
  • Image 1
  • Image 2
Calculated at checkout
Bookmark and Share

Product Description

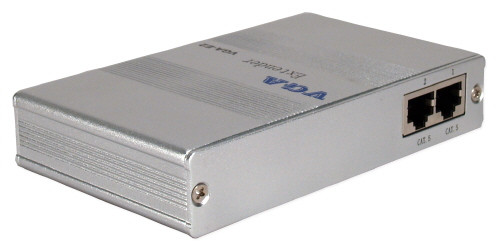

2 Port VGA/QXGA CAT5/RJ45 Extender System Transmitter Module with Local Port

Extends video signal up to 300-Meter (984ft) using the VGA Extender System and CAT5/RJ45 cable. This transmitter or local module provides 2 VGA distribution amplifier port over CAT5 plus local port that allows connection of another monitor near the computer. Supports maximum resolution of 2048x1536/60Hz for up to 50-Meter, 1280x1024/60Hz for up to 100-Meter, 1024x768/60Hz for up to 180-Meter, 800x600/60Hz for up to 200-Meter, & 640x480/60Hz for up to 300-Meter.

Note: This must be used in conjunction with VGA-C5ER or VGA-C5ERP VGA Extender System's Receiver/Remote Module. Includes transmitter and power adaptor. Required Cables: Solid CAT5e/6 Cables. (Connectors: HD15/RJ45 Female)


Click the button below to add the VGA 2 Port VGA Extender over Cat 5 System to your EZOrder list.
