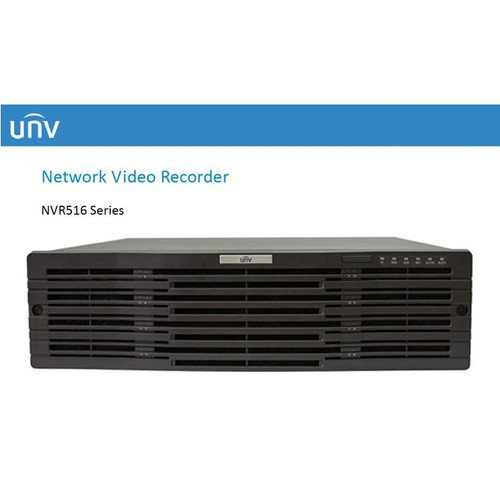

Uniview NVR516-128 128 Channel NVR Raid

Bookmark and Share
  • Uniview NVR516-128 128 Channel NVR Raid
  • Uniview NVR516-128 128 Channel NVR Raid
Price:
Call for Installer Pricing 800-822-2604
SKU:
061-516-128
Brand:
Condition:
New
Bookmark and Share

Product Description

  • 64/128-channel input
  • Third-party IP camera supported with ONVIF conformance
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • Up to 12 Megapixels resolution recording
  • Support H.265/H.264 video formats
  • Accurate retrieval, instant playback
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • 16 SATA HDDs, Up to 8TB for each HDD, Hot-Swap
  • Support RAID 0/1/5/6/10/50/60
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • Support P2P, UPnP, NTP, DHCP, PPPoE
  • Support mobile client access


Model

NVR516-64

NVR516-128

Video/Audio Input

IP Video Input

64-ch

128-ch

Two-way Audio Input

1-ch, BNC

Network

Incoming Bandwidth

384Mbps

512Mbps

Outgoing Bandwidth

384Mbps

Remote Users

128

Video/Audio Output

HDMI/VGA Output

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

HDMI1

4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

HDMI2:

4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, BNC

Synchronous Playback

16-ch

Decoding

Compression

H.265/H.264

Live view/Playback

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1

Hard Disk

SATA

16 SATA interfaces

Capacity

up to 8TB for each HDD

eSATA

1 eSATA interface

miniSAS

2 miniSAS ports

Disk array

Array type

RAID 0/1/5/6/10/50/60

External Interface

Network Interface

4 RJ-45 10M/100M/1000M adaptive Ethernet Interface

2 1000M SFP Ethernet Interface

Serial Interface

1 x RS232, 1 x RS485

USB Interface

Rear panel: 4 x USB3.0

Alarm In

24-ch

Alarm Out

8-ch

Decoding Card (optional)

2 slots (4-ch HDMI or 6-ch HDMI outputs per card)

Power Output

12V

General

Power Supply

100 ~ 240V AC

Consumption

( without HDD )

≤ 50 W

Working Temperature

-10°C ~ + 55°C ( +14°F ~ +131°F )

Working Humidity

10% ~ 90%

Chassis

19-inch rack-mounted 3U chassis

Dimensions

131mm × 482mm ×477mm ( 5.1" × 19.0" × 18.8" )

Weight ( without HDD )

≤ 10 Kg ( 22.05 lb )
