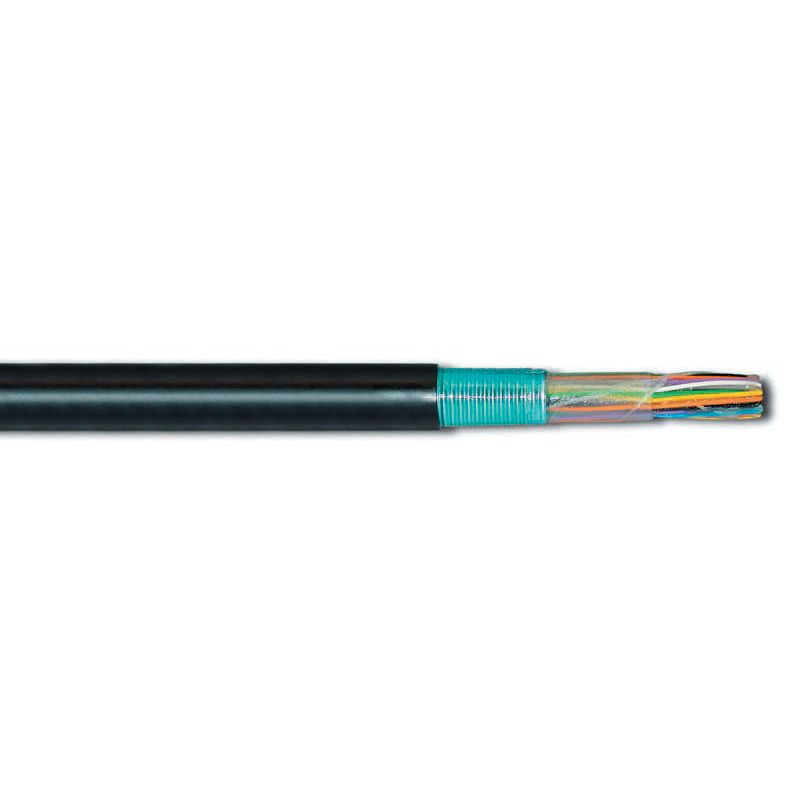

SEALPIC-FSF cables are designed for direct burial or duct applications where protection from moisture is required and aluminum shielding is desired.
SEALPIC-FSF may be used aerially, but must be attached to a support strand.

Physical Description

• CONDUCTORS: Solid annealed copper in 19, 22, 24 and 26 AWG.
• INSULATION: Conductors are dual insulated with an inner layer of foamed,natural polyolefin covered by an outer layer of solid, colored polyolefin. Theconductor insulation is color coded in accordance with industry standards.
• TWISTED PAIRS: Individual insulated conductors are twisted into pairs withvarying lay lengths to minimize crosstalk and specific color combinations toprovide pair identification.
• CORE ASSEMBLY: Cables of 25 pairs or less are assembled into a cylindricalcore. Cables larger than 25 pairs are assembled into units, which are then usedto assemble the core. Units are individually identifiable by color codedunit binders.
• FILLING COMPOUND: The core assembly is filled with an 80°C ETPRcompound, completely filling the interstices between the pairs and underthe core wrap.
• CORE WRAP: A non-hygroscopic, dielectric tape is applied overthe core assembly to provide thermal protection for the core.SHIELDING: A corrugated, copolymer coated, 8-mil aluminum tape is appliedlongitudinally with an overlap. The shield interfaces are flooded.
• JACKET: A black, linear low-density polyethylene jacket is applied overall. Thejacket provides a tough protective covering designed to withstandexposure to direct sunlight, atmospheric temperature changes and stressesexpected in standard installations.
• JACKET MARKINGS: Information such as manufacturer’s identification,pair count, AWG, product identification, sequential footage and a telephonehandset is printed at 2 ft. intervals on the cable jacket.
