Lutron Sivoia QED 18/4 Shielded 16/2 Stranded 18/1 Stranded 500'

Bookmark and Share
  • Lutron Sivoia QED 18/4 Shielded 16/2 Stranded 18/1 Stranded 500'
Price:
$359.00
SKU:
311-924
Condition:
New
Shipping:
Calculated at checkout
Bookmark and Share

Product Description

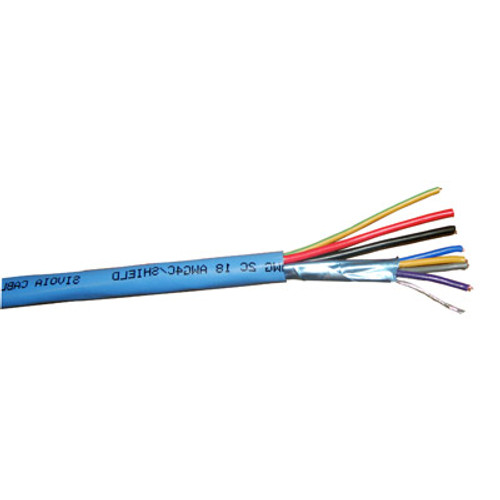

Lutron Sivoia QED 18/4 Shielded 16/2 Stranded 18/1 Stranded 500' Blue/Red Stripe

This Lutron compatible cable is for use with Lutron Sivoia QED Shade Control and window treatment systems. The cable is comparable to the Lutron SVQ-CBL cable. The applications include control and power for Lutron window drapery. Applications also include systems instrumentation and control, class 2/3 low voltage power.

Construction:
This cable consists of:

  • (1) 2 conductor 16 AWG insulated stranded bare copper, twisted pair, unshielded, plus;
  • (1) 4 conductor 18 AWG insulated stranded bare copper shielded, twisted pair, with AL foil shield, w/drain, plus;
  • (1) 1 conductor 18 AWG insulated stranded bare copper unshielded, andWith an overall FR-PVC jacket.

Cable includes calble labeling system with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.

UL listed, NEC: CL3 rated, CEC: CMG FT4, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.





*Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc.
