Honeywell Alarm System Kit Vista 20P 6150RF Wave2 Battery

Bookmark and Share
  • Honeywell Alarm System Kit Vista 20 6150RF Wave2 Battery
Calculated at checkout
Bookmark and Share

Product Description

Kit Includes:

  • 1 - Honeywell VISTA®20P Control Panel - 357-VISTA20P

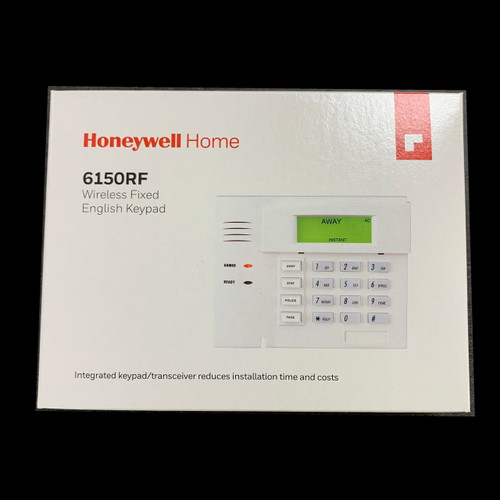

  • 1 - Honeywell 6150RF Fixed Language Integrated Keypad/Transceiver - 357-6150RF
  • 1 - 12V4.0AH LEAD ACID Rechargeable Battery - NT-12/4
  • 1 - Honeywell WAVE2 Two-tone Siren - 357-WAVE2

Honeywell VISTA®20P Control Panel - 357-VISTA20P

The high capacity, feature-rich VISTA-20P lets you deliver more value to your customers on each and every sale with up to 48 zones of protection, Internet uploading/downloading, graphic keypad support and dual partitions. VISTA-20P gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. In addition, the VISTA-20P, used with an AlarmNet® Internet or 4G communicator can be installed in premises without TELCO lines. The panel’s installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA-20P an ideal choice for higher end installations.


    • IP alarm reporting and uploading/ downloading capability for Internet and Intranet use via iGSMV4G, 7845i-ENT, GSMV4G or GSMX4G
    • Supports four graphic touchscreen keypads
    • Wireless keys can be programmed without using zones
    • Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
      • 40 hardwire expansion zones
      • 40 wireless expansion zones
    • Two low current on-board trigger outputs
    • 100 Event Log viewable at system keypads with time/date stamp
    • 48 system user codes assignable to either partition
    • Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
    • Two independent partitions plus a common partition
      • Global Arming from any system keypad
      • Go to function to view or operate one partition from the other
      • Separate partition account numbers
    • 16 output devices
      • Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
    • Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
    • Supports four-wire and up to 16 two-wire smokes
      • Works with Sentrol CleanMe™ maintenance signal
    • Multiple actions on output devices depending on system state
      • Turns lights off when system arms
      • Turns the same light on when system disarms
      • Flashes same lights when system is in alarm
    • Built-in phone line cut monitor with programmable delay and annunciation options
      • Display on system keypads
      • Trigger local sounders
      • Trigger system bell

Security Dealer Features

      • Automatic System Load Shed
        • During extended AC power fail, the system battery will be disconnected to prevent irreversible battery failure. Reduces service calls to replace batteries.
      • Dynamic Signaling
        • Reduces redundant reporting to the central station when multiple reporting methods are used; i.e. digital dialer and AlarmNet radio

Valuable End-User Features

      • Viewable on system keypads:
        • Exit countdown
        • Time and date display*
        • Event log*
      • Auto keypad backlighting on entry
      • Keyswitch arming
      • Programmable macro buttons and single-button arming
      • Supports a variety of wireless remote controls for single-button operation
      • User Scheduling
        • Latchkey reports to pagers
        • Auto arm/disarm
        • “User access” time windows
      • VIP Module allows system control from any touchtone phone
      • Chime by zone



Click the button below to add the Honeywell Alarm System Kit Vista 20P 6150RF Wave2 Battery to your EZOrder list.
