HDMI Extender Cat5E Cat6 Cable Built-in IR 120M 394' 1080P Daisy Chainable

Bookmark and Share
  • HDMI Extender Cat5E Cat6 Cable Built-in IR 120M 394' 1080P Daisy Chainable
  • HDMI Extender Cat5E Cat6 Cable Built-in IR 120M 394' 1080P Daisy Chainable
  • HDMI Extender Cat5E Cat6 Cable Built-in IR 120M 394' 1080P Daisy Chainable
  • HDMI Extender Cat5E Cat6 Cable Built-in IR 120M 394' 1080P Daisy Chainable
  • Image 5
  • Image 6
  • Image 7
Price:
$159.00
SKU:
PD33326
Condition:
New
Shipping:
Calculated at checkout
Bookmark and Share

Product Description

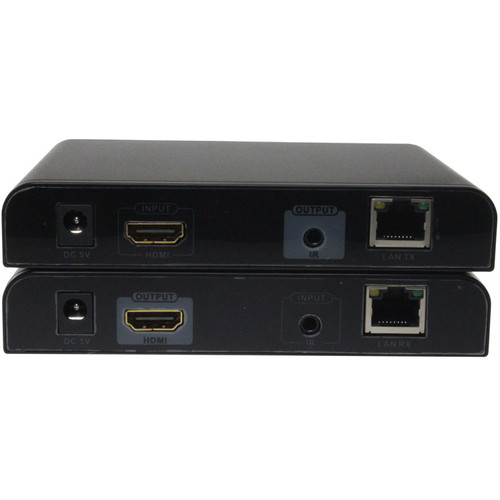

HDMI Extender Over Cat5 / Cat6 Cable with Built-in IR (Up to 394ft at 1080p)

The PD33326 extends your HDMI connection up to 328 feet using a single Cat5e cable or 394 feet using a single Cat6 cable. Extending your HDMI cable using Cat5e / Cat6 cables saves you money and is easier to run through walls and other compact areas. The HDMI extender includes 2 IR cables, which allows you to control your Blu-ray, DVD player, or any other HDMI enabled device into another area of the room, such as a cabinet and have the ability to control it without pointing at the cabinet. These extenders can be used in homes, offices, restaurants, bars, and any location that you need to run an audio/video signal over longer distances. Please see diagram 5 above

Another solution is for splitting your signal using UTP cables to view on multiple monitors or viewing devices. Depending on how many ports you have on your router or switch, this will allow you to split the signals using UTP cables. After you split your signals you will need extra receiver(s) to finish the set up. Extra receiver part # is. Please see diagram 6 above

For longer distances you can use this device with a router or switch. Using a router or switch will help extend the distance another 100M (Cat5e)/120M (Cat6) (per router or switch), you can daisy chain multiple routers to continue to extend your distance. Please see diagram 7 above

Please Note: Only the IR emitters that come with the product are compatible. IR emitters that are not purchased with this kit will not work

Features

  • Extends HDMI and IR over a single Cat5/6 cable
  • 1080p at up to 328ft using Cat5e, 394ft using Cat6
  • Can use multiple receivers when sender and receivers are on same router
  • 5VDC power adapters included
  • Resolution
    • 480i/480p
    • 720p
    • 1080i
    • 1080p
  • Includes sender unit, receiver, 2x AC adapters, 2 x IR cables
  • Compliant to HDCP
  • Supports all HDMI features including full HD 1080p deep color, lip sync, CEC and all high resolution multi-channel audio format, including Dolby digital plus, 7.1 LPCM, Dolby TrueHD and DTs Master Audio
  • Power Consumption: 3W (max) each
  • Ethernet bandwidth: 100Mbps

EZOrder

Click the button below to add the HDMI Extender Cat5E Cat6 Cable Built-in IR 120M 394' 1080P Daisy Chainable to your EZOrder list.
