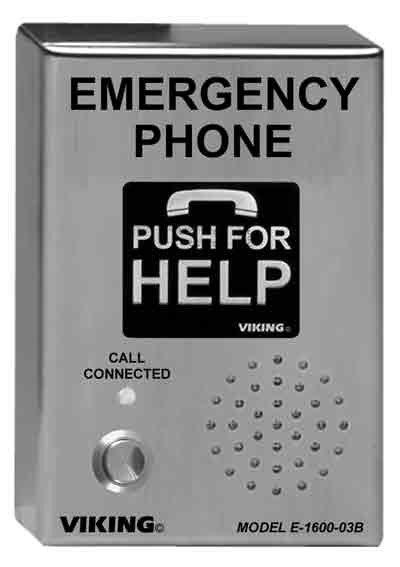

E1600-03BEWP ADA Compliant Emergency Phones with Built-in Auto Dialer and Digital Announcer

Bookmark and Share
  • E1600-03BEWP ADA Compliant Emergency Phones with Built-in Auto Dialer and Digital Announcer
Price:
$780.11
SKU:
032-056
Brand:
Condition:
New
Shipping:
Calculated at checkout
Bookmark and Share

Product Description

The 1600A Series ADA Compliant Emergency Phones are designed to provide quick and reliable handsfree communication for any standard analog telephone line or analog phone system station port. All 1600A Series phones meet ADA requirements for elevator/ emergency telephones, and can be programmed from any Touch Tone phone. The phones can dial up to 5 programmable emergency numbers, as well as 2 central station numbers. In addition, the E-1600-20A and E-1600-52A feature a second "INFO" button that will dial up to 3 non-emergency numbers.

The 1600A Series phones can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF Touch Tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile E2 memory. All units are phone line powered, requiring no batteries or external power and are compatible with common Central Station Monitoring equipment.

For outdoor installations where the unit is exposed to precipitation or condensation, select 1600A Series phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more information, see DOD# 859.

  • Meets ADA requirements for Emergency Phones:
    -Can automatically light the "Call Connected" LED for the hearing impaired
    -Transmits a unique location I.D. code or voice announcement
    -Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory (no batteries required)
  • Marine grade 316 stainless steel prevents corrosion on stainless models
  • Dials up to 5 emergency numbers
  • E-1600-20A and E-1600-52A dial up to 3 non-emergency “INFO” numbers
  • Cycles through backup emergency and non-emergency numbers on busy or no-answer
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating,
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F)
  • 9 different chassis or board only available
  • Available in 42” tall tower phone model E-1600A-BLT-EWP
  • Central Station Monitoring capability (dials 2 numbers)
  • Optional PB-100 Polling System available
  • Optional BLK-3-EWP strobe light kit available
