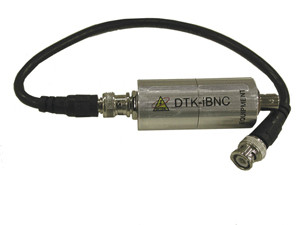

DTK-IBNC28 Coaxial Line Surge Protector 2.8V Video Clamping

Bookmark and Share
  • DTK-IBNC28 Coaxial Line Surge Protector 2.8V Video Clamping
Price:
$55.00
SKU:
332-128
Brand:
Condition:
New
Shipping:
Calculated at checkout
Bookmark and Share

Product Description

DITEK’s iBNC inline surge protectors are designed to protect externally-mounted cameras where a dedicated ground connection is unavailable. The iBNC diverts transient surges through the coaxial shielding, protecting the video feed without introducing ground loops. Solid performance and easy installation make the iBNC a favorite of CCTV integrators.

  • Connection Method: BNC (Female) In/Out
  • Band Pass Range: 0Hz – 10MHz
  • Standing Wave Ratio (SWR): 1.2:1
  • Insertion Loss: <.3dB @ 2GHz
  • Protection Mode: Center Pin – Shield
  • Dimensions: 3.6” D x 1.1” diameter (91 x 28mm)
  • Included Male-Male patch cord: 12” (305mm)
  • Weight: 2.5oz (71g)
  • Housing: Aluminum
  • Warranty: Ten Year Limited Warranty
