Double Door Magnetic Surface Mount Lock

Bookmark and Share

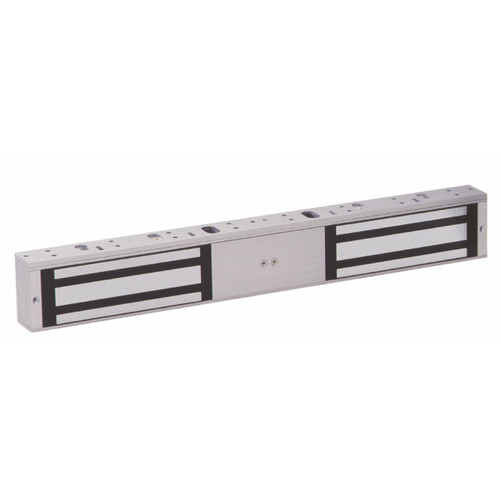

  • Double Door Magnetic Surface Mount Lock CX-92S-12TDS
Calculated at checkout
Bookmark and Share

Product Description

Camden CX-92 Series double door magnetic locks offer the best performance and value. There are 600lb. and 1200lb. models available with the option of a built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.

  • Models are UL and ULC listed
  • Weather and vandal resistant constuction proven over thousands of installations
  • Compatible with all access/egress systems
  • Field selectable 12/24V DC operation
  • On board MOV power surge protection prevents damage to mag lock
  • A wide range of mounting brackets and spacers available
  • Lifetime Warranty


  • Voltage: 12/24V DC
  • Current Draw: 2 x 500mA@12V DC 2 x 250mA@24V DC
  • Temp Range: 5F to 122F (-15C to 50C)
  • Contact Rating: TDS Models Only
  • Bond Sensor: 1A@30V DC
  • Door Status Switch: 0.5A@30V AC/DC
  • Time Delay: TDS Models Only: 0 to 30 Seconds
  • Dimensions: CX-92S-12: 21" x 2 7/8" x 1 7/8" (533mm x 73mm x 48mm)
  • Armature Plate: 1200LBS: 2 x 7 15/16" x 3" x 5/8" 2 x (202mm x 76mm x 16mm)
