Area of Refuge NEMA-4 Fiberglass Enclosure Remote 24V Power

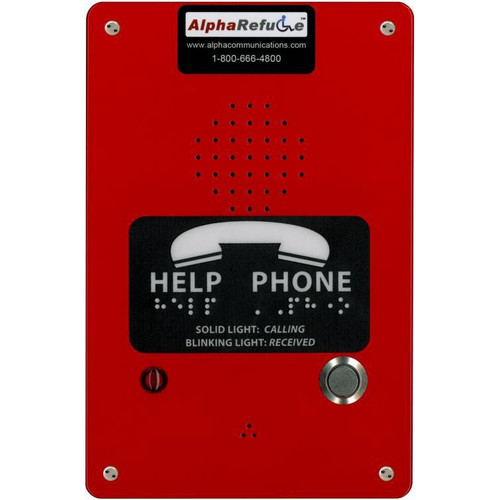

The Alpha Communications® RCB2100N Series Refuge Call Boxes are used with the AlphaRefuge™ 2100 Series Area of Refuge system, and are Surface Mount type built into a NEMA rated fiberglass enclosure, suitable for outdoor use.
The PWR2410A can provide power for the RCB2100N series Refuge Call Boxes, which operate on 24VDC 'remote' power (suffix-R). The PWR2410A is not needed when the RCB2100N series Refuge Call Boxes are powered by 'direct' 120VAC power (suffix-D).
The RCB2100N Series Refuge Call Boxes come standard with a built-in heavy-duty metal call button, and are available with an optional mushroom head call button (add Suffix- M).
The RCB2100N Series Refuge Call Boxes come standard with a built-in back-up battery and charging circuitry and feature a Red call placed / call answered LED.
Only one (1) PWR2410A power supply is needed per system.
- Enclosed in a Red fiberglass NEMA 4 rated enclosure, suitable for outdoor use
- Fully Automated Operation
- Location Identification Message
- Five (5) Number Dialing Capability
- On-site or Remote Programming
- Built-in Consolidator Feature
- Phone Line Monitoring / Relay Alarm
- Heavy-duty Metal Call Button
- Call Placed / Call Answered LED
- IBC, NFPA, ADAAG Code Compliant
- Braille Label
- Built-in Battery Back-up and Charging Circuitry
- Options (at extra cost) include Strobe & Interface Relay, Mushroom Head call button (add suffix-M) and built-in security pinhole camera
- Made in USA
