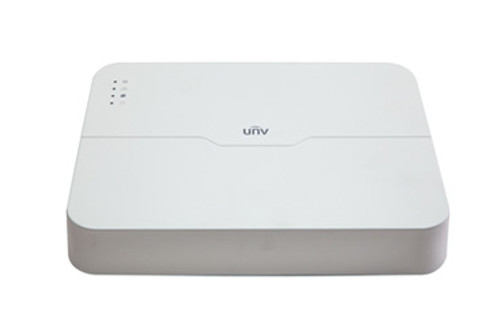

8ch NVR All Channel POE Holds 1 Hard Drive

Bookmark and Share
  • 8ch NVR All Channel POE 1 Hard Drive
  • 8ch NVR All Channel POE 1 Hard Drive
  • 8ch NVR All Channel POE 1 Hard Drive
Price:
Call for Installer Pricing 800-822-2604
SKU:
061-201-08P
Brand:
Condition:
New
Bookmark and Share

Product Description

8ch NVR All Channel POE Holds 1 Hard Drive

  • 8-channel input Third-party IP cameras supported with ONVIF conformance
  • HDMI and VGA output up to 1080P
  • Up to 4 Megapixels resolution recording
  • Accurate retrieval, instant playback
  • 1 SATA HDD up to 6 TB
  • Plug & Play with up to 8 independent PoE network interfaces
  • Support for P2P, UPnP, NTP, DHCP, PPPoE
  • Support for mobile client access

Video and Audio

IP Video Input

8-ch

Two-way audio Input

1-ch, RCA

Network

Incoming bandwidth

80Mbps

Outgoing bandwidth

64Mbps

Remote connection

128

Video/Audio Output

HDMI/VGA Output

HDMI/VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Recording Resolution

4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

8-ch

Decoding

Compression

H.264

Live view/ Playback

4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

4 x 4MP@20, 8 x 720p@25

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

External Interface

Network Interface

1 RJ-45 10M/100M self-adaptive Ethernet Interface

Network Function

HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P

USB Interface

Rear panel: 1 x USB2.0, 1 x USB3.0

PoE

Interface

8 independent 100 Mbps PoE network interfaces

Supported Standard

IEEE 802.3at

General

Power Supply

52V DC

Consumption ( without HDD and PoE )

≤ 8 W

Working Temperature

-10°C ~ + 55°C ( +14°F ~ +131°F )

Working Humidity

10% ~ 90%

Dimensions

270 × 205 × 42 mm ( 10.6” × 8.1” × 1.7” )

Weight ( without HDD )

≤ 0.72 Kg ( 1.59 lb )

EZOrder

Click the button below to add the 8ch NVR All Channel POE Holds 1 Hard Drive to your EZOrder list.
