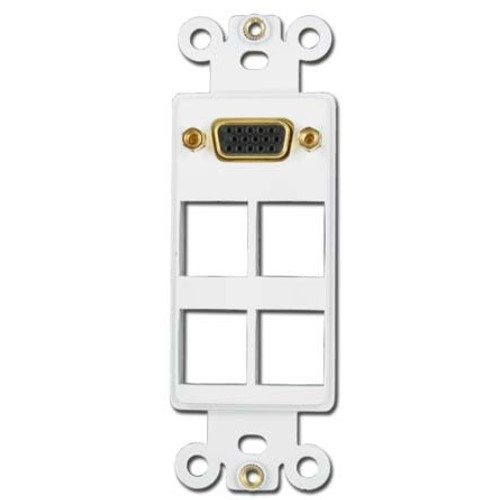

Single gang VGA plate with four keystone ports. Great for mixed use installations. Accepts most common keystone style inserts.
This wall plate combines a VGA coupler (female to female) with four keystone holes, allowing you to customize the installation to your specific needs.
The 15-pin VGA connector is gold-plated on all connections and parts. The orientation of the DB jack is narrow side down on the outside of the wall plate and narrow side up on the inside of the wall plate. This can be reversed by removing the coupler and inverting it in the wall plate.
The wall plate is white and measures 3 3/4" wide by 4 1/2" tall by 3/4" thick (at the VGA coupler). The keystone holes measure 21/32" tall by 9/16" wide and the horizontal spacing between keystone holes is 3/32", with vertical spacing at 9/32".
The package includes two 3/4" long mounting screws.
To create a complete plate add part number 310-235WH.
