The BEPR25-66 Building Entrance Protector provides 25 pairs of high speed compatible indoor primary protection for any twisted pair communication line. Industry standard 110 type connectors for input and output terminations allows for easy integration into any communications or data system.
The BEPR25-66, using standard 5 pin protection modules gives UL Listed and NEC compliant protection for equipment and personnel against lightning, electrostatic discharge, and AC line power faults.

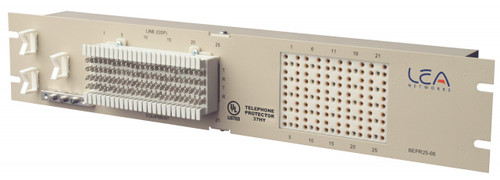

The BEPR25-66 consists of a low profile two units high rack mount, epoxy powder coated carbon steel housing, input and output connection blocks, and a high speed data optimized 5 pin module protection field. An internal 26 AWG fusing wire is included to give maximum isolation in case of catastrophic faults.
LEA Networks' CAT5 SmartWired Building Entrance Protectors have been designed to provide enhanced transmission performance for ADSL2+, VDSL2 and EFM high speed data applications.
CAT5 SmartWired starts with LEA Networks' protection module field. The block has been redesigned to minimize crosstalk and insertion loss, while decreasing part weight and size to reduce the mounting footprint. Unique wire routing and guide ringfeatures ensure that the Category 5e internal wiring maintains ideal performance. Combined with LEA Networks high speed protector modules, the system gives maximum protection and performance for POTS, T1, ADSL2+, VDSL2 and Ethernet based services.
