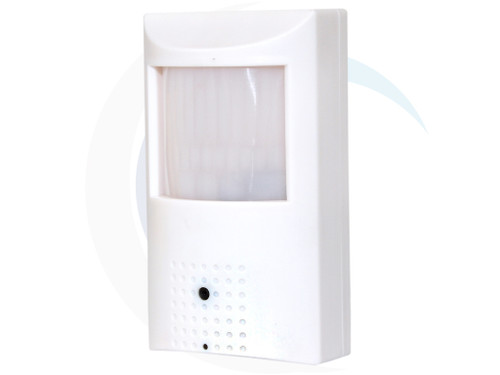

2.4MP 4-In-1 HD Motion Detector Hidden Camera - 059-H12M80A37

Bookmark and Share
  • 2.4MP 4-In-1 HD Motion Detector Hidden Camera - 059-H12M80A37
Price:
$72.00
SKU:
059-H12M80A37
Condition:
New
Shipping:
Calculated at checkout
Bookmark and Share

Product Description

2.4MP 4-In-1 HD Motion Detector Hidden Camera - 059-H12M80A37

Features:

  • 4-in-1 (AHD, HD-TVI, HD-CVI, 960H)
  • 1/2.7" 2.4MP HD Aptina Sensor
  • Effective Pixels: 1920(H) x 1080(V)
  • 3.7mm Fixed Lens
  • 0.01Lux @ F1.2 (AGC On)
  • 30FPS (NTSC)
  • 12V DC
  • OSD Menu. Can Switch to Analog Mode
  • CoC Compatible (Control Over Coax)
  • FLC / BLC (E Model)
  • NTSC / PAL Compatible

Specifications:

  • CAMERA
    • Image Sensor 1/2.7" 2.4MP HD Aptina Sensor
    • Effective Pixels 1920 (H) x 1080 (V)
    • Electronic Shutter AUTO: 1/50-1/100, 000Sec (PAL) & 1/60-1/100,000Sec (NTSC)
    • Mini. Illumination 0.01Lux @ F1.2, (0Lux IR on)
    • S/N Ratio ≥45dB(Max 70 dB)
    • Video Output Composite Signal (1.0Vp-p, 75Ω), Compatible with AHD, HD-TVI, HD-CVI, 960H
    • Video Frame Rate 30fps @ 1080P
  • CAMERA FEATURES
    • AGC Automatic / manual
    • IR LEDs N/A
    • IR LEDs Distance N/A
    • Day / Night Auto (ICR) / B&W / Color
    • Noise Reduction 2D DNR
    • BLC Automatic / manual
    • White Balance Auto adaptive(Range 2200~10000K)
    • WDR N/A
    • OSD Menu via Coaxial Cable (CoC), Compatible with Analog Mode
  • LENS
    • Focal Lens 3.7mm Fixed Lens
  • RECORDING
    • Encode CBR
  • GENERAL
    • Power Supply DC 12V ± 10%
    • Power Consumption 500mA
    • Working Environment -22ºF ~ 140ºF (-30°C ~ 60°C)
    • Protection N/A, Indoor Only
    • Dimensions 2.7" x 4.7" x 3.3" (69 x 120 x 83mm with Bracket)
    • Weight 0.26lbs (0.12kg)

Literature:

 2.4MP 4-In-1 HD Motion Detector Hidden Camera - 059-H12M80A37 datasheet
