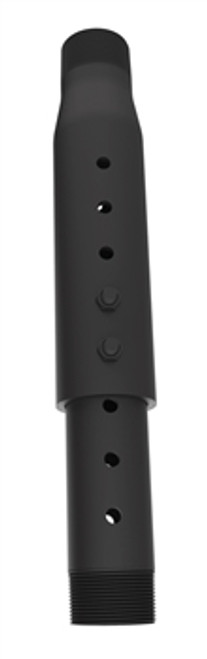

1.5" NPT Threaded Pipe 8.66" - 14.57" Ceiling Mount Bracket
Our ceiling mount system is comprised of different integrated peices that allow you to customize your installation to the size of the LED TV and to the length of the extension from the ceiling needed. This is the head bracket which willhold any LED TV with a VESA of 200x200. If your TV is larger you will integrate it with a TL3780 bracket so it can accomodate LED TV's up to 80".
The down pipes are either the NPT1.5-35.4 or NPT1.5-8.66/14.57 and the ceiling mounts are CMP for a fixed ceiling mount or CMPT for a tilted ceiling mount. The down rods attach to the CMH Ceiling Mount Head.
Our images show you the different applaications of the ceiling mount system.
First one is using Model: CMH with Model: CMP that attaches to the ceiling. You can buy custom sized 1.5" NPT Pipe for your desired length from ceiling to viewing angle. This set up allows you to attach TV's with VESA patterns up to 200x200.
Second one is using Model CMH 200X200 mount ahead attached to our Model: TL37-80 bracket with existing holes that match both CMH and TL37-80 together. (No drilling required). This application allows for you to attached TV's up to 80".
Zuum products are for purchase by professional installers only. Please call for installer pricing.
